15kg pelet kayu vffs beg membentuk mengisi mesin pengedap beg

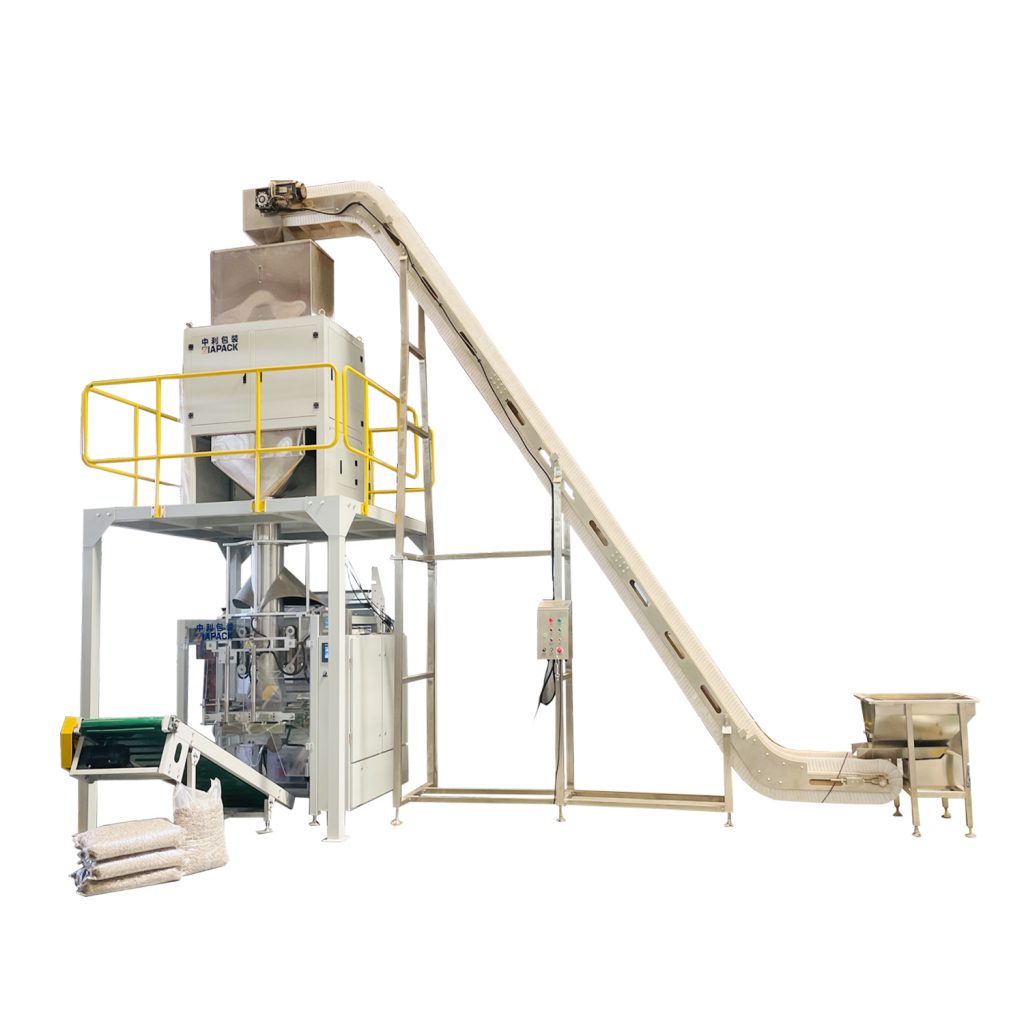

Automatic15-20 kg wooden pellets bag forming filling packaging machine

pengenalan :

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Parameter teknikal:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Keperluan udara termampat: 0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

Diameter dalam teras: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Ciri dan Ciri Utama:

• Pelbagai jenis kantung: Bantal dan kantung Gusset.
• Kelajuan tinggi: 20-50 beg/min
• Mudah dikendalikan: Pengawal PLC dan skrin sentuh warna, petunjuk kerosakan pada skrin sentuh.
• Mudah untuk menyesuaikan: hanya kira-kira 10 minit untuk menukar beg yang berbeza.
• Kawalan frekuensi: kelajuan boleh diselaraskan oleh penukaran kekerapan dalam julat.
• Automasi Tinggi: tanpa pemandu dalam proses pembekalan dan pembungkusan, penggera mesin secara automatik apabila kegagalan.
• Keselamatan dan Kebersihan:
• Tiada filem, mesin akan penggera.
• Penggera mesin dan hentikan tekanan udara yang tidak mencukupi.
• Pengawal keselamatan dengan suis keselamatan, penggera mesin dan berhenti apabila pengawal keselamatan dibuka.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

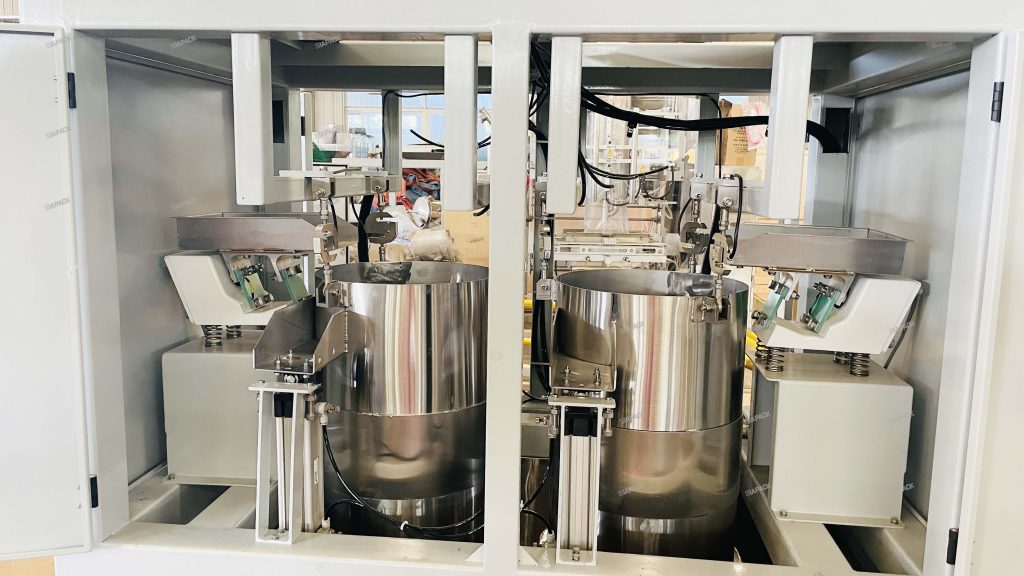

• ZLC2-15k double bucket weighing machine

  pengenalan :

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Ciri-ciri:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
