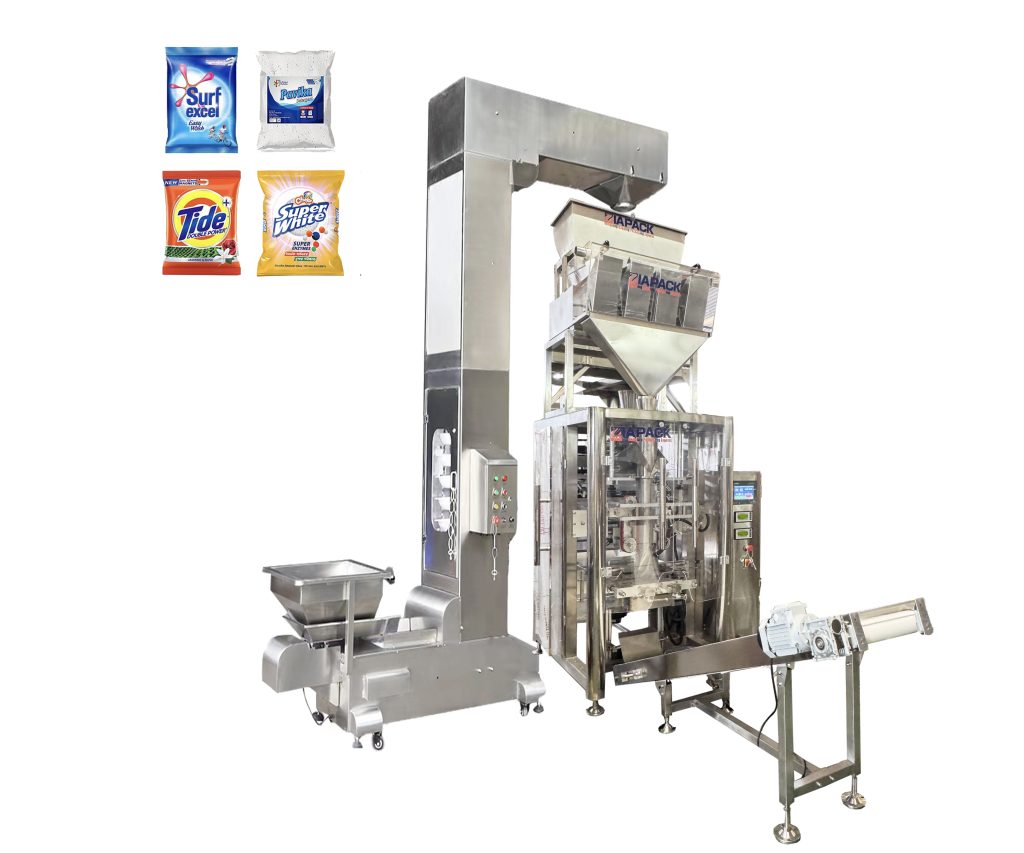

Automatic 0.2-0.4kg detergent powder weighing filling packaging line pengenalan :
This unit machine is special design for packaging granule product like rice beans detergent powder sugar millet and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.

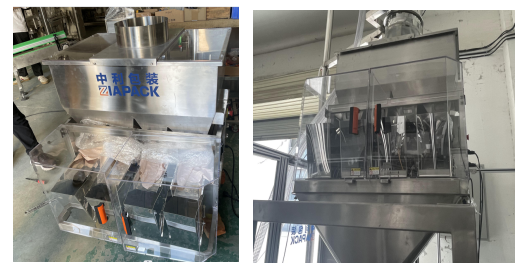

1,ZLC4-1000F Four bucket feeding weighing machine
Ciri-ciri:
- Grand new modular control system
- Adopt stepless feeding mode to control the flow of material in real-time to ensure accurate weighing.
- Amplitude can be adjusted automatically
- It can quantitatively weigh twomaterials andfour materials
- The weigher can also be run with a bagging machine to automate the weighing and packing process fully.
- Suitable for many granule and powder materials.
Parameter teknikal:
Model: ZLC4-1000F
Weighing Range:100-1500g
Accuracy: 0.2-0.5%
Max Speed:5-54 P/M
Hopper Volume: 3L
Parameters Press No. 100
Max Products: Mixed 4
Control Panel:7” Touch Screen
Options Dimple :Plate/Timing Hopper/Printer/Reject Device
Power Requirement 220V/900W/50/60HZ/4A
Packing Dimension(mm) 1170(L)X1150(W)X990(H)
Gross Weight 220kg

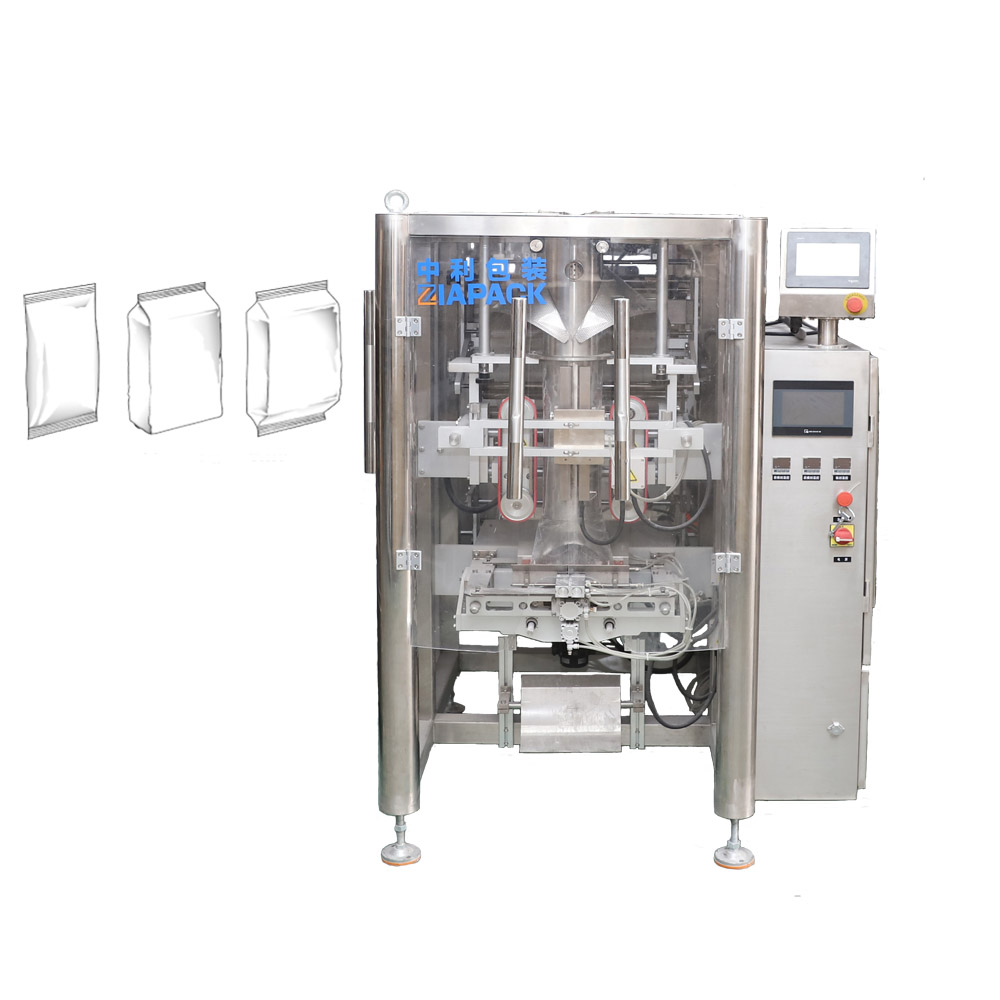

ZL520 VFFS BAG FORMING FILLING SEALING PACKAGING MACHINE
This machine equipped with bag-making, cutting, code printing , etc.Control by Siemens PLC and operating on Siemens Touch Screen，Panasonic servo motor, Japanese Photo Sensor , Korean Air valve, The film pulling system adopted servo motor driving making speed faster .
Parameter teknikal:
Weighing Range: 0.2kg-1.5kg
Packaging Speed:20-40 bags/min
Bag size: (100-320)*(80-250)mm(L*W)
Max film width:520mm
Keperluan udara termampat: 0.6Mpa 0.65m³/min
Diameter luar kekili: 450mm
Diameter dalam teras: 75mm
Berat mesin: 600kg
Power source:3.5kW 380V±10% 50Hz
